Trade Performance¶
v.2.0.0.0
Overview¶

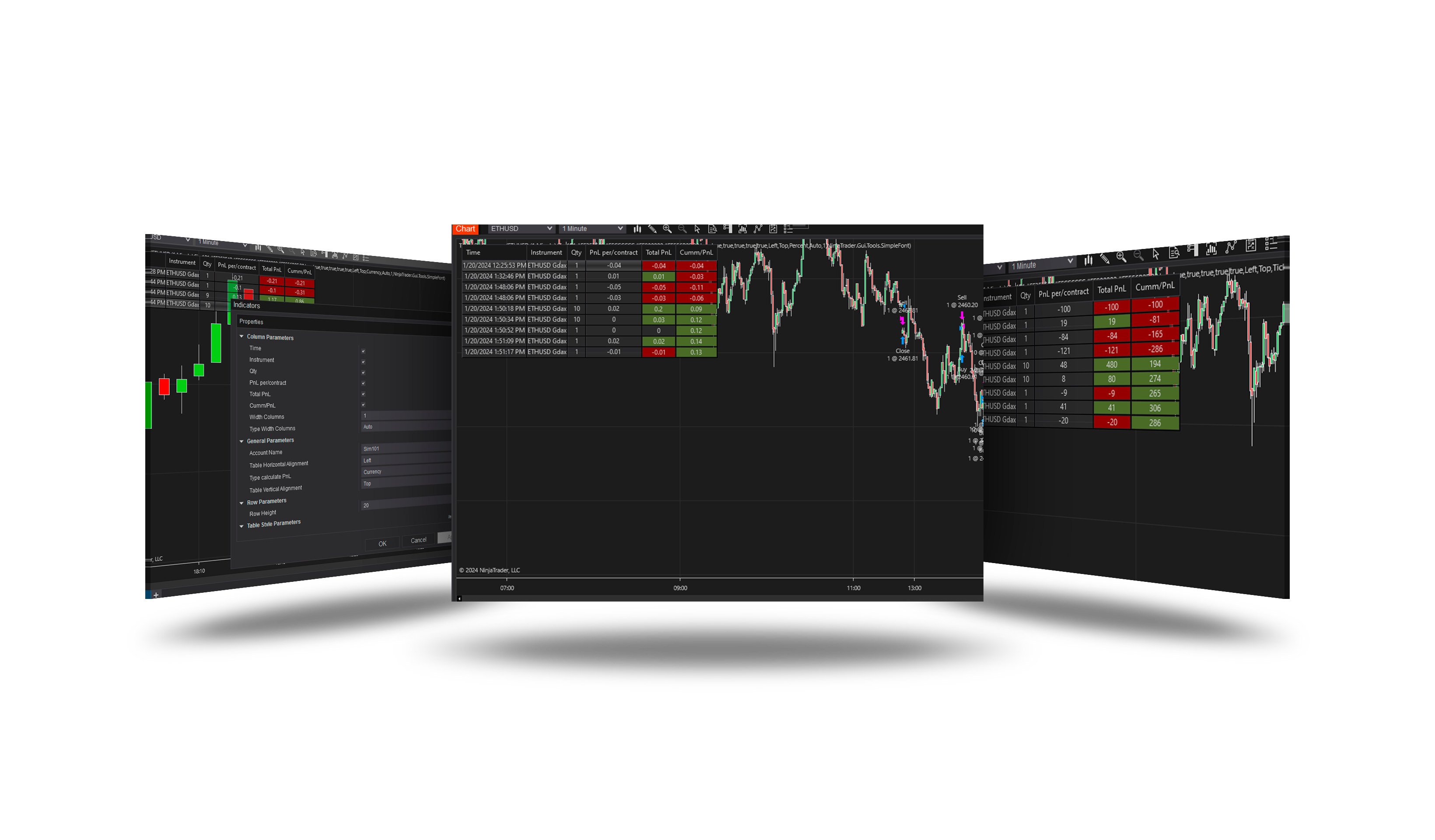

A table of the account's closed trades on the chart - time, instrument, quantity, PnL per contract, total and running PnL - with a summary: trades, win rate, net PnL, profit factor, gross profit and loss, average trade, maximum drawdown, largest win and loss, commission. Click the header to fold it to one line.
How it works¶
- Trades are built from the account's executions first in, first out, per instrument - partial fills and scaling counted correctly.
- PnL in currency, ticks, points or percent; net or gross of commission.
- Show all instruments or only the chart's; limit the rows shown - the summary counts every trade.
Parameters¶
General¶
| Parameter | Default | What it does |
|---|---|---|
| Account | — | The account whose trades the table shows. |
| PnL in | Currency | Currency, Ticks, Points, or Percent (the trade's price change). |
| Net of commission | On | On: the commission is taken off the PnL (Currency only). Off: gross PnL. |
| This instrument only | Off | On: only the trades of the chart's instrument. Off: every instrument of the account. |
| Rows shown | 50 | The last trades shown in the table; 0 = all. The summary counts every trade. |
| Folded | Off | Only the header with the one-line summary. A click on the header folds / unfolds the table on the chart. |
| Summary | Bottom | The summary above or below the table. |
| Horizontal position | Left | Where the table sits on the chart, left to right. |
| Vertical position | Top | Where the table sits on the chart, top to bottom. |
Columns¶
| Parameter | Default | What it does |
|---|---|---|
| Time | On | The time of the closing execution. |
| Instrument | On | The instrument. |
| Qty | On | The contracts closed. |
| PnL per/contract | On | The trade's PnL per contract. |
| Total PnL | On | The trade's PnL. |
| Cumm/PnL | On | The running total of the PnL. |
| Column width | 1 | The width value; used with the Pixel and Star width types. |
| Column width type | Auto | Auto: fits the text. Pixel: the width in pixels. Star: shares of the table's width. |
| Row height | 20 | The height of a table row in pixels. |
Style¶
| Parameter | Default | What it does |
|---|---|---|
| Font | Montserrat 12 | The table's font. |
| Font color | — | The text color. |
| Background | — | The background of the rows and the summary. |
| Profit color | dark olive green | The cell background of a profit. |
| Loss color | maroon | The cell background of a loss. |
Version history¶
v.2.0.0.0 - October 2026
- New: fold / unfold with a click, a summary above or below the table, net / gross, this instrument only, rows shown.
- Fixed: PnL with partial fills and scaling, the running total across instruments, Percent.
